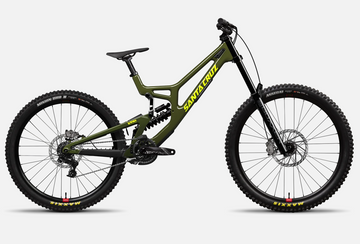

Santa Cruz V10 DH S Medium
Contact us to check availability, shipping costs, and to purchase 307-761-9260. No sales tax if shipped outside of Wyoming.
THERE’S NOTHING LIKE RIDING A DH BIKE. NOTHING.
The V10 is the bike ridden by the Syndicate to World Cup victories. Fully refined—not redefined—the eighth generation V10 is designed for riders looking to emulate their heroes or find the best lines in the bike park. It’s for those who understand there’s no substitute for a proper downhill bike. Lap after lap, day after day, nothing compares to riding a downhill bike. Nothing.
PARK TO PODIUM
SPEED IS YOUR FRIEND
DH bikes are thoroughbred, singularly focused machines designed for pure speed and thrills downhill.
TUNED
THE PIECES OF THE PUZZLE
Three points of 3-position adjustment allow fine-tuning for fit, terrain and preference: the rear axle flip chip (+5mm / 0 / -5mm) adjusts fore-aft weight balance; reach-adjust headset cups (-8mm / 0 / +8mm) customize fit, and the lower link flip chip calibrates BB height and head tube angle.
| Frame | |
|---|---|
| Frame | Carbon CC MX 208mm Travel VPP™ |
| Weight | 36.81lbs / 16.69 kg |
| Wheel Size | MX/29" |
| Suspension | |
| Fork | RockShock BoXXer Base, 200mm |
| Shock | RockShox Vivid Select+ Coil |
| Drivetrain | |
| Bottom Bracket | SRAM DUB 83mm Threaded BB |
| Cassette | SRAM PG720 DH, 11-25t |
| Chain | SRAM PC1110, 11spd |
| Chainguide | E13 LG1+ Chainguide |
| Crankset | SRAM Descendant DH, 165mm, 36t |
| Rear Derailleur | SRAM GX DH, 7spd |
| Right Shifter | SRAM GX, 7spd |
| Brakes | |
| Front Brakes | SRAM Maven Bronze |
| Cockpit | |
| Grips / Bar Tape | Burgtec Bartender Pro Grip |
| Handlebars | OneUp Aluminum Bar |
| Headset | Cane Creek 50 IS41 Headset 1-1/8" |
| Saddle | Fizik Alpaca Gravita X5 Saddle |
| Seatpost | RaceFace Chester, 31.6 |
| Stem | OneUp Direct Mount Stem |
| Wheels | |
| Front Rim | Reserve 30|HD AL 6069 |
| Front Hub | Industry Nine 1/1, 20x110 Boost, 32h |
| Front Tire | Maxxis Minion DHR II 29"x2.5", 3C MaxxGrip, DH -or- Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH |
| Rear Rim | Reserve 30|HD AL 6069 |
| Rear Hub | Industry Nine 1/1, 12x157, HG, 32h |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH |
| Specs | |
| Bottom Bracket Shell | 83mm Threaded |
| Rear Brake Mount | 200mm or 220mm Post |
| Shock Length | 250mm |
| Fork Compatibility | 200-203mm |
| Fork Offset | 52mm |
| Front Derailleur Mount | No compatibility |
| Headset | IS41 upper/ IS41 lower (Reach Adjust) |
| Max Chainring Size | 36t |
| Max Tire Clearance | 2.5" |
| Rear Spacing | 12x157mm |
| Rear Travel | 208mm |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Bushing Size Front | 30x8 |
| Shock Bushing Size Rear | 30x8 |
| Shock Stroke | 75mm |
| Suspension System | VPP |
