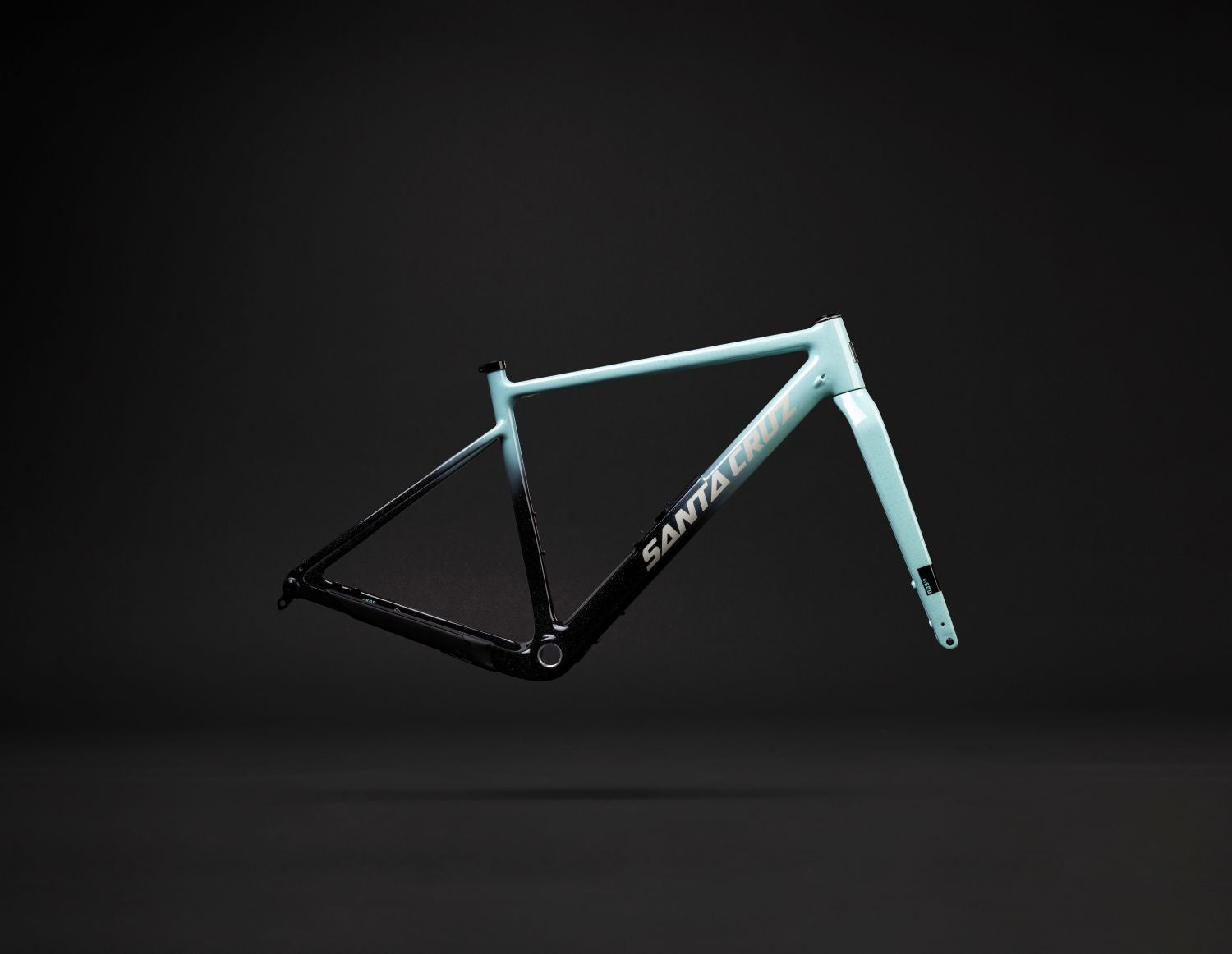

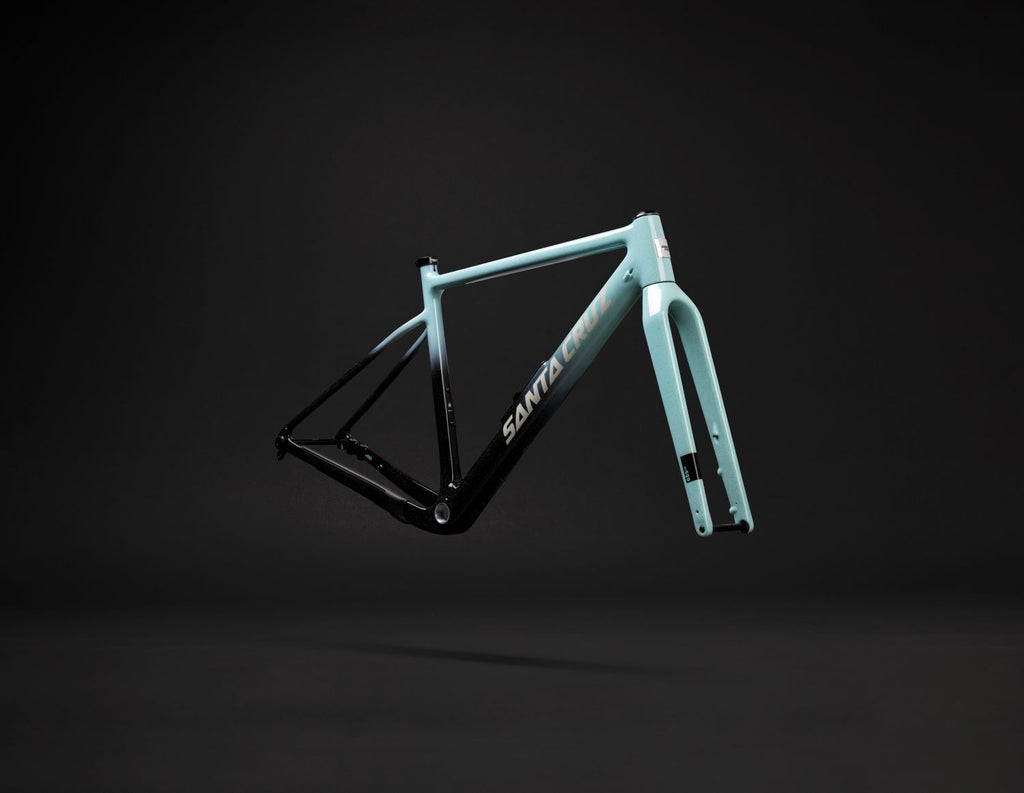

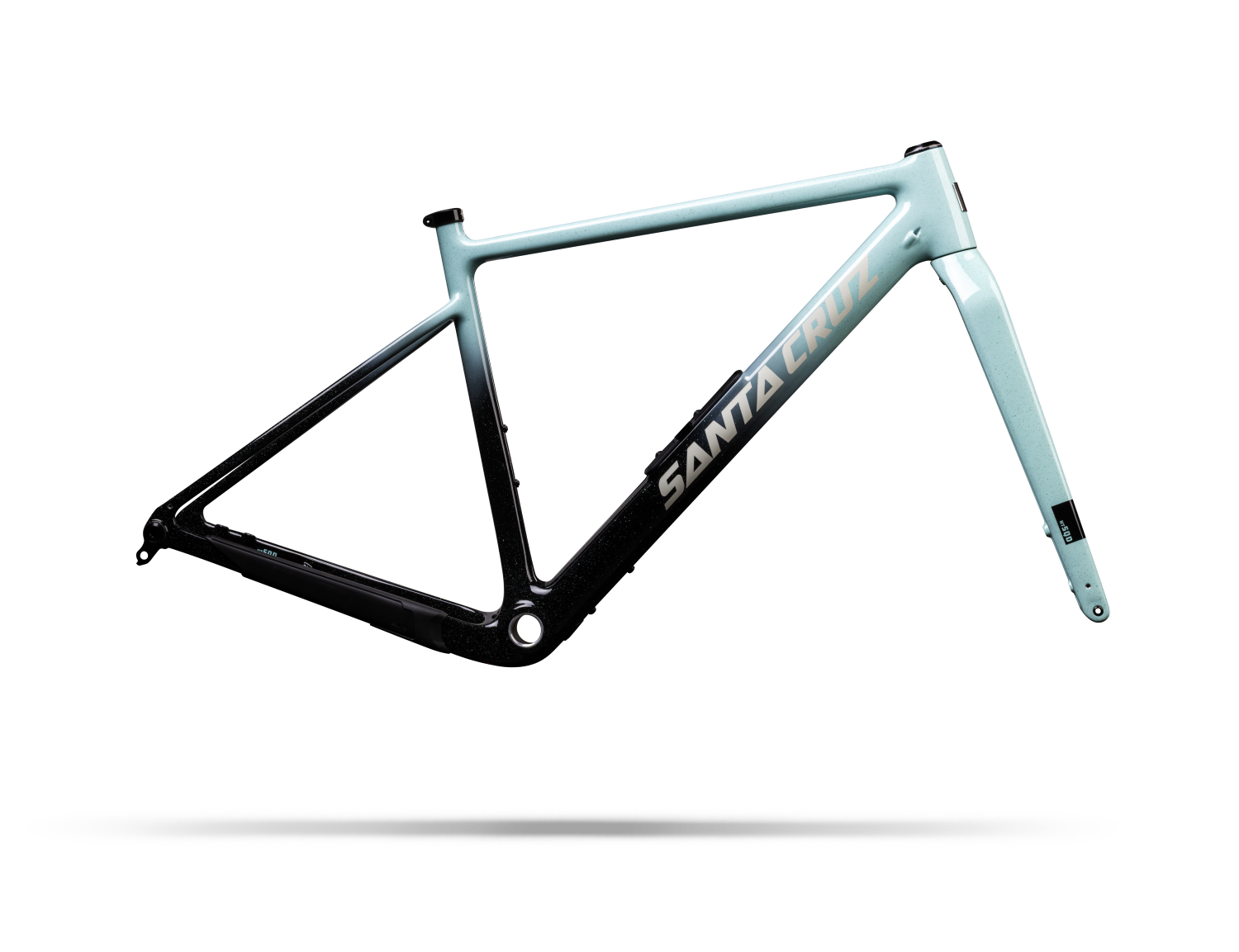

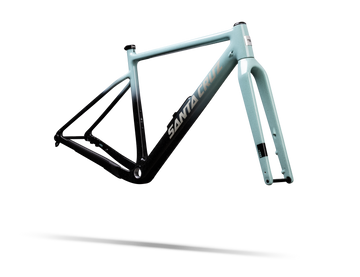

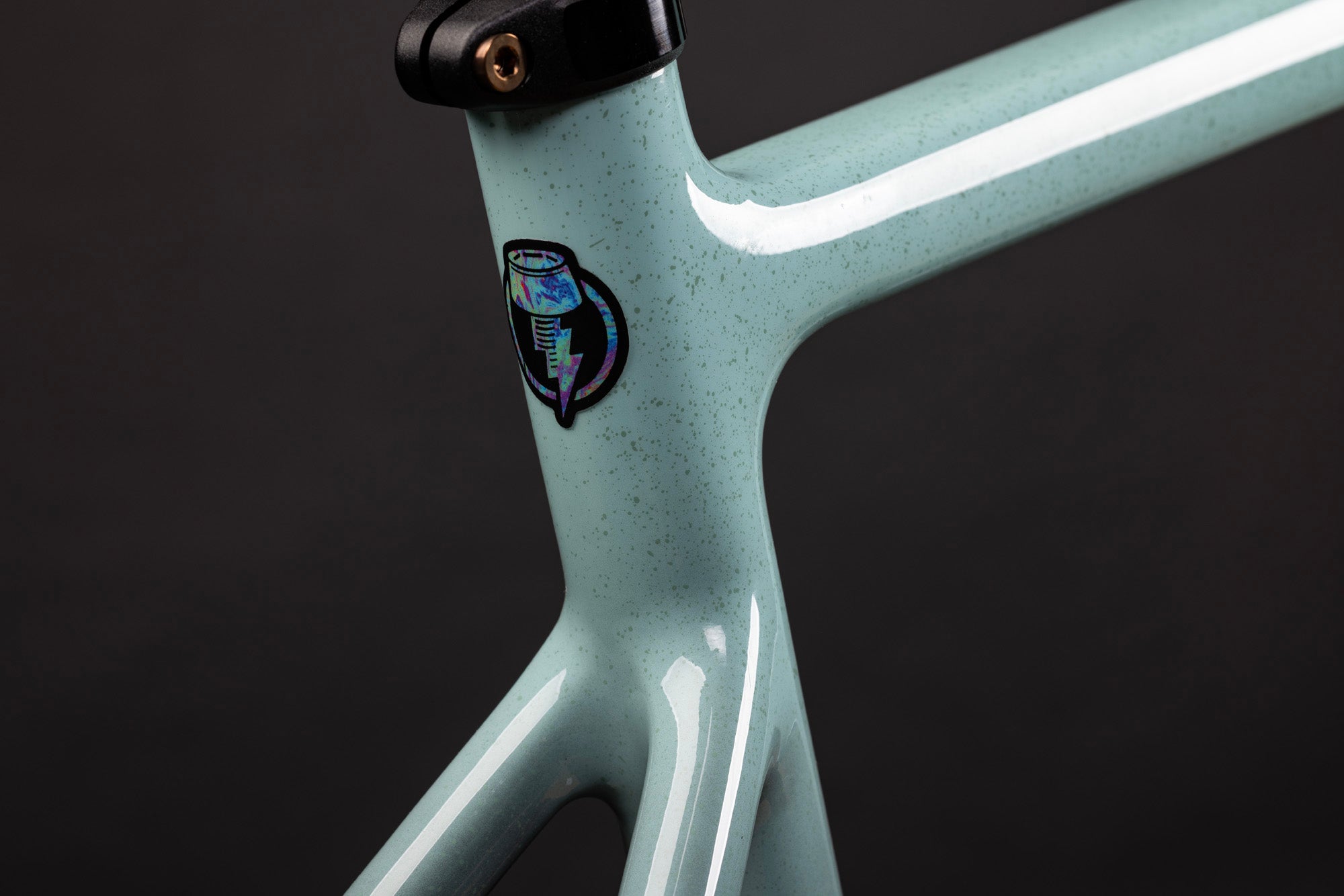

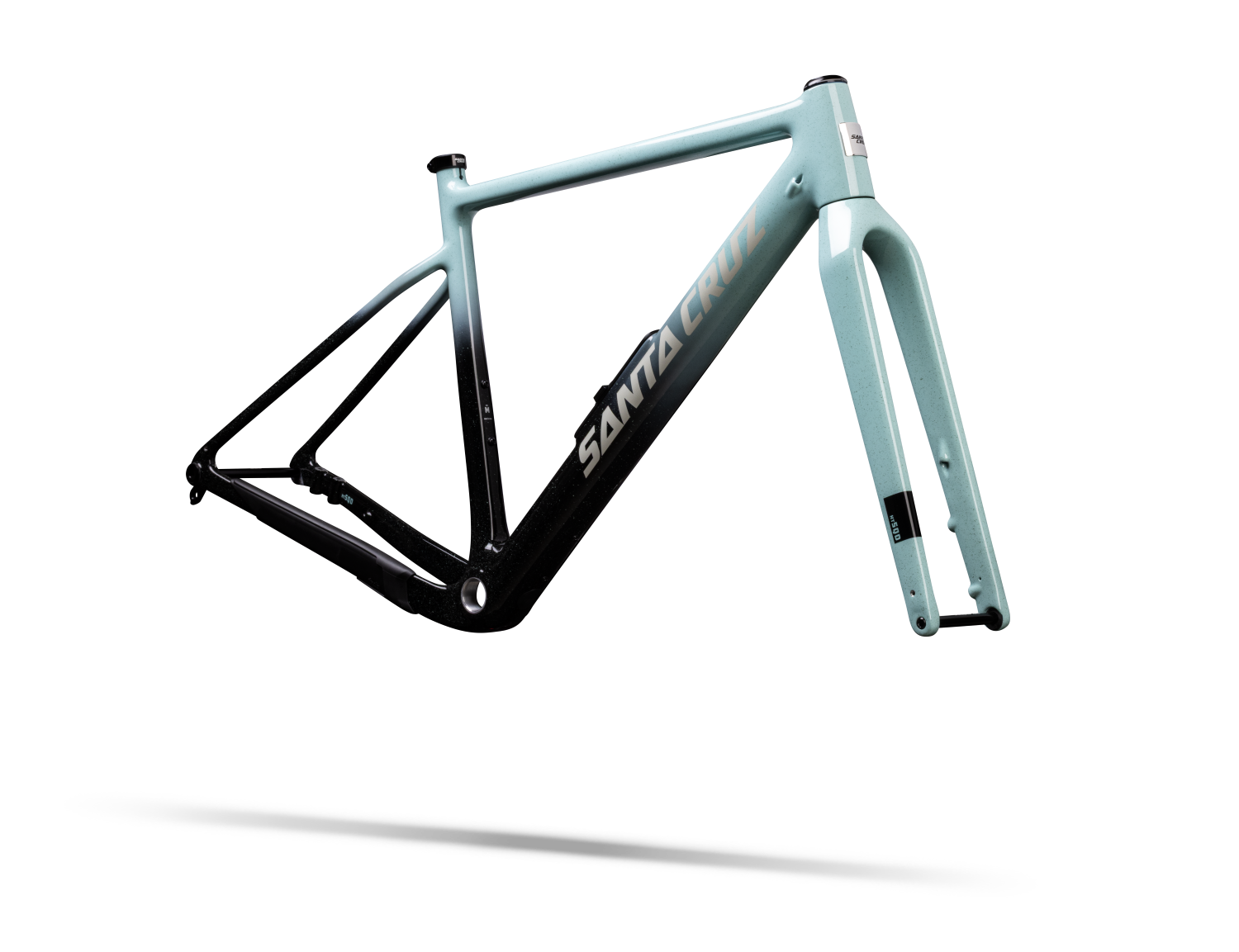

Limited Edition Stigmata HTSQD Frame MD
Contact us to check availability, shipping costs, and to purchase 307-761-9260. No sales tax if shipped outside of Wyoming.
From Unbound to SBT Gravel, to Big Sugar and Around The Bay, and thousands of miles in between, the Santa Cruz htSQD puts their Stigmatas to the test. Our elite multi-disciplinarians of endurance reach for the Stigmata on race day, training day, and recovery days alike. Keegan may have reached for the Highball to win Marathon World Champs, but he tuned the motor aboard his Stigmata. Stigmata is designed to be versatile, to go seamlessly from oversized knobbies and a suspension fork to skinny, smooth tires and the rigid fork, ready for whatever terrain you're tackling. This limited-edition htSQD colorway celebrates the success of the team, but also just looks pretty damn cool.
A GRAVEL BIKE THAT CAN RAIL A TURN
The Stigmata is an off-road speed bike (think swift, not Zwift). Its singletrack prowess stems from progressive geometry, plenty of room for big tires, and decades of designing the best mountain bikes. It’s the drop-bar bike for riders who expect to shred.
Size: M (5'6" - 5'9" / 167 - 175cm)
Frame
Material: Carbon CC
Frame: Carbon CC Gravel
Weight: 4.12lbs / 1.87kg
Wheel Size: 700c
Specs
Bottom Bracket Shell: Threaded 68mm
Rear Brake Mount: 160mm FM
Fork Axle to Crown: 430mm
Fork Compatibility: 40mm
Fork Offset: 45mm
Front Derailleur Mount: Clamp On
Headset: Integrated (IS41/52)
Max Chainring Size: 42t (1x) | 50t (2x)
Max Tire Clearance 50mm (1x) | 45mm (2x)
Rear Spacing: 142mm
Seat Clamp Diameter: 31.8mm
UDH Compatible: Yes
Water Bottle Mounts: 3
Lifetime Warranty
We build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
